Anatomy of Heartwood and Resin Zones in Aquilaria spp.

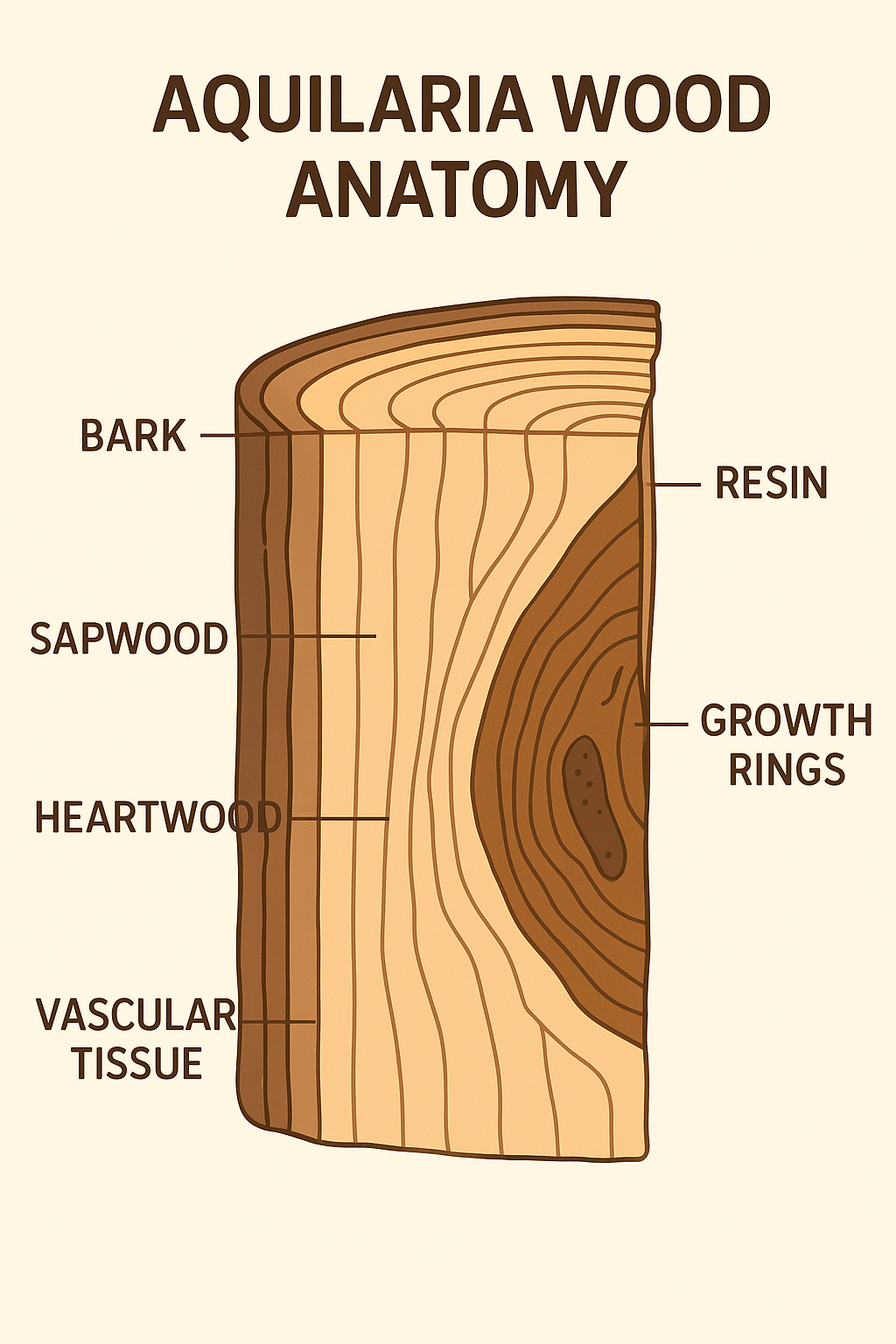

1. Overview of Wood Structure

Aquilaria wood anatomy consists of:

  • Sapwood (alburnum) – outer, living xylem
  • Transition zone – physiologically active but beginning to lignify
  • Heartwood (duramen) – inner, dead xylem where resin deposition occurs after induction
  • Resinous zones – pathological tissues containing oleoresin (Oud)

Understanding each zone is essential for:

  • Predicting resin yield
  • Designing inoculation points
  • Determining optimal harvest time
  • Interpreting GC-MS/HPLC profiles

2. Detailed Wood Anatomy

2.1 Bark and Cambial Region

  • Outer Bark: corky, protective layer
  • Inner Bark (phloem): sieve tubes, companion cells, parenchyma
  • Vascular Cambium: thin meristematic ring responsible for secondary growth
    • Generates xylem inward, phloem outward
    • Critical for wound response and callose formation after inoculation

2.2 Sapwood (Alburnum)

Characteristics:

  • Pale cream to white in color
  • High moisture and active transport zone
  • Contains:
    • Vessels: diffuse-porous; medium-to-large diameter
    • Fibers: thick walls, supportive
    • Parenchyma: axial + ray parenchyma (key in resin biosynthesis)
  • No significant resin accumulation in healthy trees

Function:

  • Conducts water and nutrients
  • Responds first to microbial invasion with defense metabolites

3. Transition Zone

This is the zone where resin biosynthesis is triggered after infection or induction.

Features:

  • Intermediary region between sapwood and heartwood
  • Partially functional xylem
  • Higher metabolic activity compared to heartwood
  • Elevated presence of:
    • Phenolic precursors
    • Sesquiterpene synthase enzymes
    • Reactive oxygen species (sometimes artificially induced—e.g., MnO₂ blends)

Significance:

  • Primary battlefield of microbe–host interaction
  • Resin synthesis initiates here before diffusing inward/outward

4. Heartwood (Duramen)

4.1 Normal Heartwood (Uninfected)

  • Uniformly pale, fragrance-free
  • Low metabolic activity
  • Filled with non-resinous extractives
  • No chromones or resinous sesquiterpenes

Microanatomy:

  • Tyloses formation: partial or absent when uninfected
  • Vessel occlusion: minimal
  • Parenchyma: senescent but intact

4.2 Pathological Heartwood (Infected/Induced)

This is the commercial agarwood.

Diagnostic Features:

  • Dark brown to black coloration
  • Irregular patches or streaks (resin streaking patterns vary by species)
  • Microbial colonization limited to wound margins (controlled in artificial induction)

Microscopic Properties:

  • Vessels:
    • Blocked by tyloses, gums, and resinous deposits
    • Some contain fungal hyphae (e.g., F. oxysporum, Lasiodiplodia)
  • Fibers:
    • Lignified matrix impregnated with resin
    • Increased density and pigmentation
  • Axial Parenchyma:
    • Main site of resin biosynthesis
    • Chromone and sesquiterpene synthesis highly active

5. Resin Zones (Oleoresin Deposition Zones)

5.1 Anatomy of Resin-Impregnated Tissue

Resin zones are heterogeneous and consist of:

  • Type A – Central Resin Pockets
    • Dense, black, high-grade resin
    • Formed near inoculation points
    • High chromone content
  • Type B – Diffuse Resin Streaks
    • Radial or tangential streaks
    • Follow rays and vascular pathways
    • Higher sesquiterpene / lower chromone ratio
  • Type C – Peridermal Resin Deposits
    • Near bark or cambium
    • Common in physical wound induction
  • Structural Characteristics:
    • Darkened vessels filled with oleoresin
    • Ray parenchyma swollen with lipophilic droplets
    • Fungal remnants occasionally present but inactive in matured resin
    • Increased wood density (up to 3–5×) compared to whitewood

6. Resin Induction and Anatomical Changes

  • 6.1 Physical Induction (e.g., drilling, nailing)
    • Wound → callus formation → resin streaks
    • Limited lateral spread
    • Mostly produces lighter resin grades
  • 6.2 Chemical Induction
    • Oxidizing agents (e.g., MnO₂, Fe salts)
    • Hyperactivates ROS pathways
    • Stimulates phenylpropanoid metabolism
    • Strong initial resinization but shorter duration
  • 6.3 Biological Induction (Microbial)
    • F. oxysporum, L. theobromae, endophytic consortia
    • Enters vessels → triggers defense
    • Leads to:
      • Tyloses
      • Lignification
      • Resin pocket formation
  • Produces higher chromone content in many cases
  • 6.4 Hybrid Methods (e.g., MnO₂ + F. oxysporum blends)
    • Combined ROS and microbial elicitation
    • Produces:
      • Wider resin zones
      • Faster resin onset
      • Higher biomass conversion efficiency

7. Practical Implications for Growers & Biotech Labs

7.1 Determining Inoculation Depth

  • Ideal: just inside the transition zone
  • Ensures optimal resin biosynthesis

7.2 Harvest Decision

Indicators of mature resin:

  • 70–80% vessel occlusion
  • Strong darkening (≥ grade 2 internal coloration)
  • High density when cutting or testing float-sink behavior
  • GC-MS: elevated chromones + 2-(2-phenylethyl)chromones

7.3 Evaluating Induction Success

  • Resin spread area (radial mm/year)
  • Intensity of resin coloration
  • Parenchyma activation under microscopy
  • Oil yield (%) from micro-extraction samples
